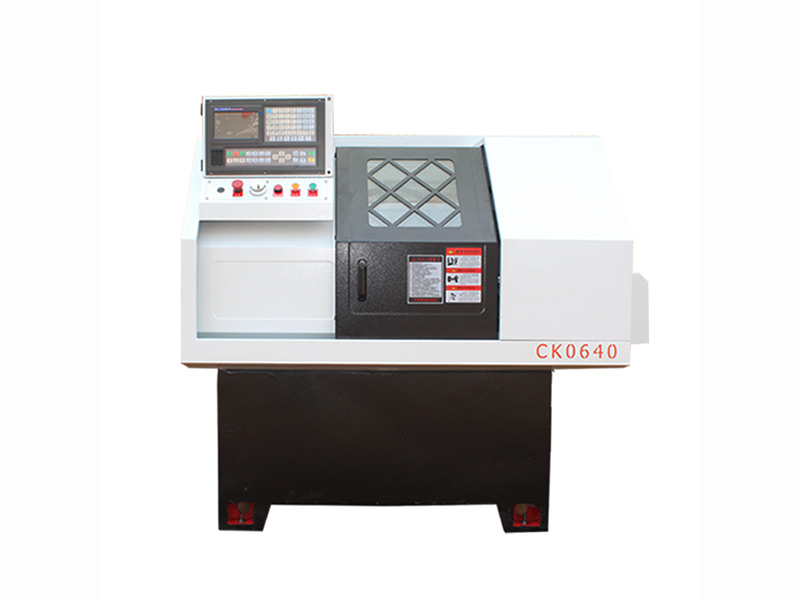

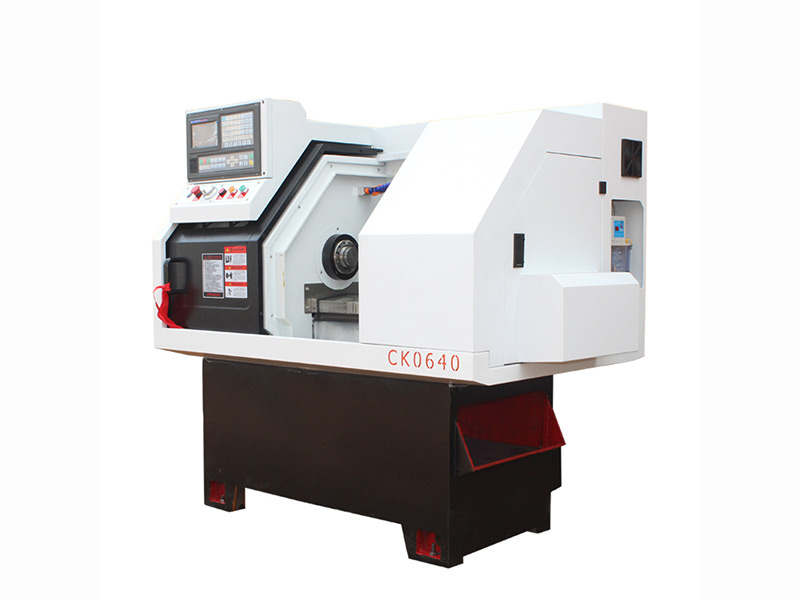

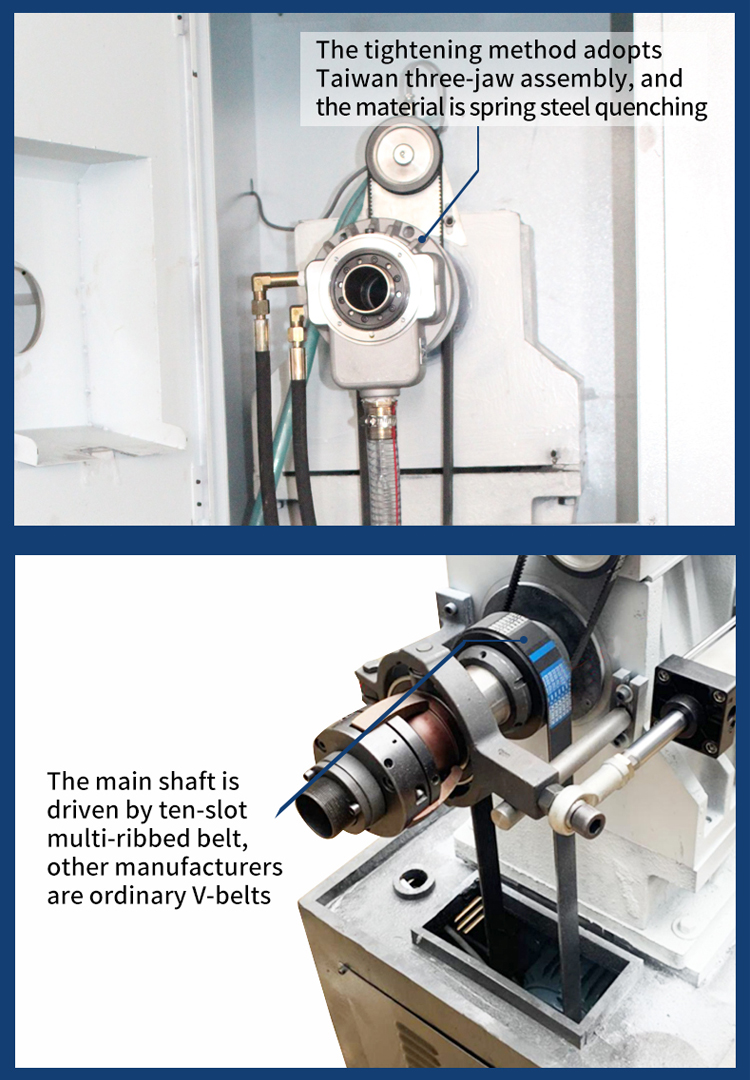

CK0640 horizontal lathe Display：
Parameter table：
| Model | CK0640 |
| Max. swing dia. over bed(mm) | 320 |
| Max. swing dia. over cross slide(mm) | 110 |
| Max. turning length(mm) | 350 |
| Spindle bore(mm) | 49 |
| Spindle rod bore(mm) | 41.5 |
| Spindle speed(rpm) | 0-3000 |
| Spindle rod thread | M48*1.5 |
| Main motor power(KW) | 4 |
| Spindle head type | A2-5 |
| Taper of spindle bore | 21° |
| X/Z travel(mm) | 560/350 |
| X/Z rapid travel speed(mm/min) | 12000/12000 |
| X-axis servo motor torque(N·m) | 110/4 |
| Z-axis servo motor torque(N·m) | 110/6 |
| X/Z repeated positioning accuracy(mm) | 0.005 |
| Overall dimensions(mm) | 1750*1100*1600 |
| Weight(kg) | 1000 |
